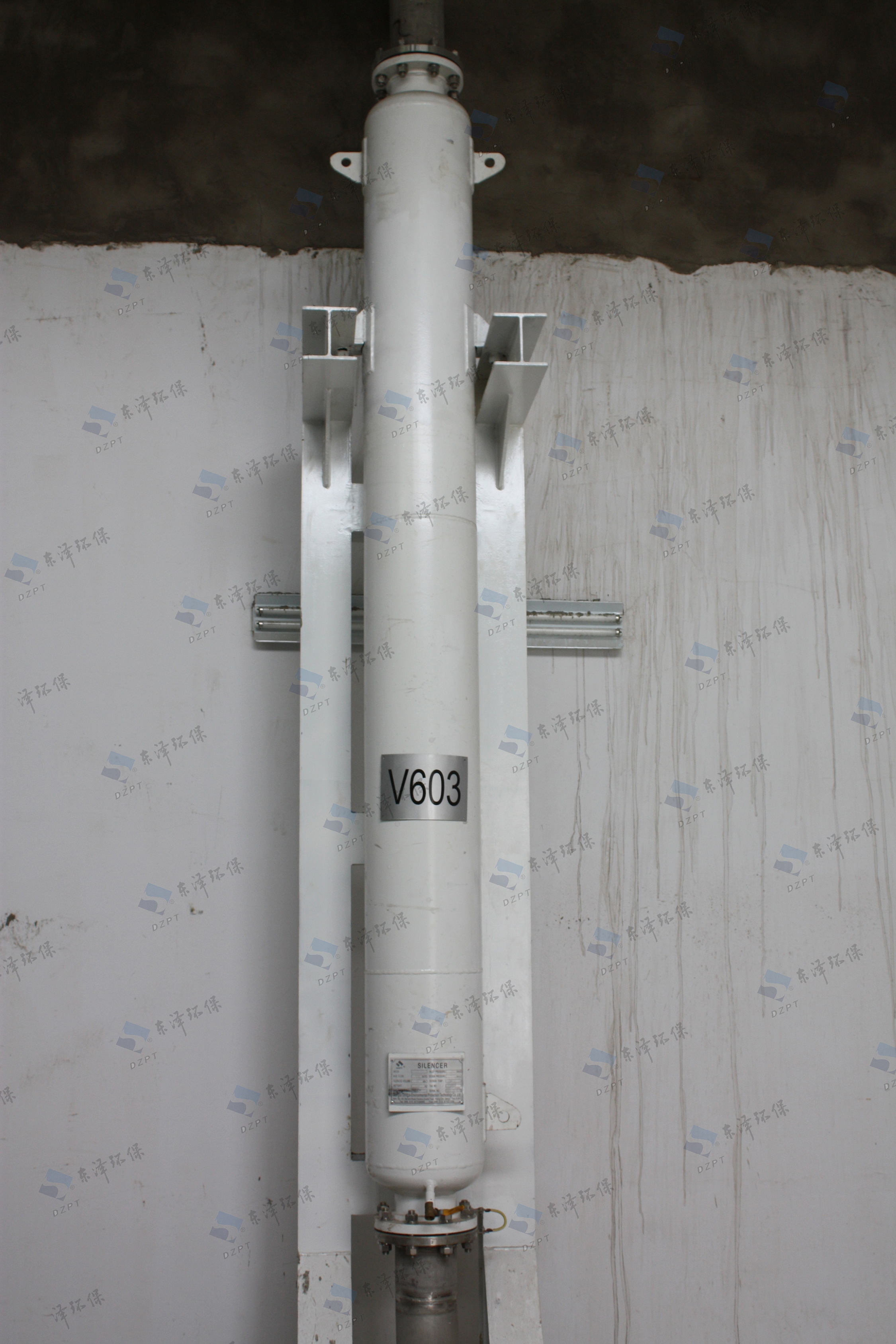

一、DYX型低壓氧氣放散消聲器

1、結構型式：本消聲器是一種節流擴散與耐熱吸聲相結合的復合型消聲器，內部結構采用了抗燃性能優良的不銹鋼。

2、適用范圍：主要用于降低空氣分離裝置和氧氣壓縮機后放散氧氣時產生的動力性噪聲，適用壓力≤1.0MPa，消聲量：30-40dB（A），使用溫度≤200°C。

DYX type low pressure oxygen discharge silencer

1 Structure: This silencer is a kind of combination silencer with throttle and depressure, heat resistance and sound absorption function. The inner shell is made of heat resistant stainless steel.
2 Application: Used to reduce the noise of oxygen compressor with pressure ≤1.0MPa, noise reduction volume: 30-40dB（A）, temperature≤200°C.

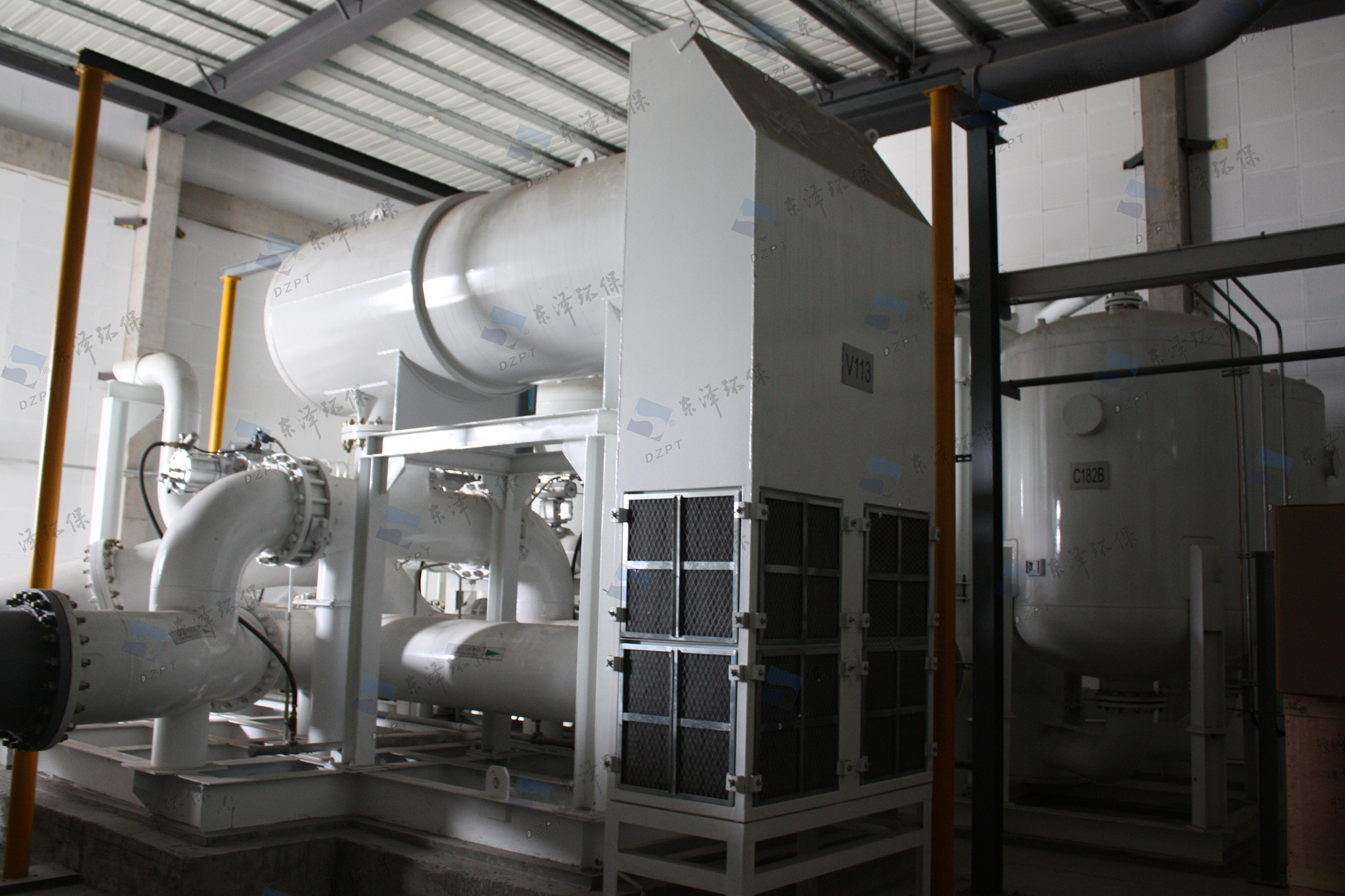

二、高爐風機配套進排氣消聲器

高壓離心通風機及軸流風機是我國工業生產中應用十分廣泛的機械設備之一，其運行時噪聲巨大，實測聲級約100~120dBA，噪聲污染十分嚴重。實測結果表明，高壓通風機在運行時，其空氣動力性噪聲要比機械噪聲高10~20dBA，因此，安裝消聲器以降低其空氣動力性噪聲是十分必要的。

我公司為西安陜鼓動力股份有限公司消聲器的專業配套生產企業，生產過程嚴格按照陜鼓標準執行，嚴格的質量控制體系，保證我公司生產的每一臺消聲器都是合格產品，用戶可放心使用。

我公司生產的高爐鼓風機消聲器可分為進氣消聲器和排氣消聲器兩種，適用風量500~21000m3/min，消聲量從30~50dBA，用戶可根據所需風量及形式選擇消聲器。

我公司生產的消聲器均配對法蘭及緊固件，現場安裝時只需把消聲器的配對法蘭與現場管道焊接，后用螺栓擰緊即可，放空消聲器的安裝只要把消聲器的支座與現場支架采用螺栓連接即可。

Blast furnace blower fan inlet and outlet gas silencer

High pressure centrifugal blower and axial flow fan are widely applied mechanical equipments with huge noise. Actually sound level could be 100~120dBA which cause severe noise pollution. After checking, when high pressure blower is running, its air dynamic characteristics noise is 10~20dBA higher than that of mechanical noise. Therefore, it is necessary to install filter to diminish its air dynamic characteristic noise.
Our company is the qualified complementary company for Xian Shangu Dynamic Share Com., Ltd. The producing process is strictly according to Shangu Standards, which ensure that each qualified silencer can be used without worry.
This type of silencer has two kinds: inlet silencer and discharge silencer. Suitable air flow from 500 to 21000 m 3 /min and noise reduced from 30~50dBA.
All silencers are matched with flange and fixing. When assemble on site, first welding counter flange and pipeline then fasten bolts; when assembly vent silencer, only need connect through bolt silencer bearing and bracket on site.

三、GYX型高壓氧氣放散消聲器

1、結構型式：本消聲器是一種節流降壓，耐熱吸聲復合型消聲器，內部結構采用了抗燃性能優良的不銹鋼。

2、適用范圍：本消聲器適用于降低氧氣壓縮機放散時產生的空氣動力性噪聲，適用壓力≤4.0MPa，消聲量：30-40dB（A），使用溫度≤200°C。

 GYX type high pressure oxygen discharge silencer

1 Structure: This silencer is a kind of combination silencer with throttle and depressure, heat resistance and sound absorption function. The inner shell is made of heat resistant stainless steel.
2 Application: Used to reduce the noise of oxygen compressor with pressure ≤4.0MPa, noise reduction volume: 30-40dB（A）, temperature ≤200°C.

四、KODP型氧氣放散消聲器　　

1、 結構型式：本系列消聲器是一種擴容阻抗復合式消聲器，內部結構采用了抗燃性能好的不銹鋼及鋁合金。　　

2、 適用范圍：本系列消聲器適用于降低氧氣壓縮機后放散氧氣時產生的動力性噪聲。　　

KODP oxygen diffusing silencer

1 Structure: This series silencer is one kind of ampliative impedance compound silencer, with internal structure made of well heatproof stainless steel and aluminum alloy.
2 Applicable scope: This series silencer is suitable for reducing kinetic noise produced by diffusing oxygen of oxygen compressor.

五、KYX型空壓機配套消聲器　　

1、 結構型式：本系列消聲器采用阻性吸聲段與抗性段相結合的阻抗復合型消聲器，可與不同風量的空壓機相配套。　　

2、 適用范圍：KYX型消聲器主要用于降低空壓機進排氣口產生的空氣動力性噪聲，阻損小于200Pa，消聲量≥25dB（A）　　

KYX air compressor compatible silencer

1 Structure : This series silencer adopts impedance compound silencer consisting of resistant sound absorption section and anti-section , and it can be compatible with air compressors with different amount of wind load .
2 Applicable scope: This KYX silencer is mainly used in reducing air kinetic noise produced at the inlet and outlet of air compressor, with a loss ≤200Pa and noise elimination ≥25dB(A) .

六、ZX系列小孔噴注消聲器　　

ZX系列小孔噴注消聲器系九十年代研制、開發的新一代降噪產品，它根據大孔降壓小孔噴注消聲的原理，通過優化設計，其降噪指標、安全性能和使用壽命遠優于目前市場上同類產品，可更好的滿足電力、冶金、石油、化工、紡織、造紙、食品等工業的低壓、中壓、次高壓、高壓、超高壓、亞臨界、超臨界等參數的各種鍋爐、壓力容器管道排汽(氣)放空及其安全閥、釋放閥排汽(氣)的降噪需要。

與國內、外同類產品相比，本系列大孔降壓消聲器具有以下獨特優點：　　

(1)消聲量大。ZXB子系列達到40dB(A)，ZXC子系列達30dB(A)(均已考慮指向性修正)；　　

(2)體小質輕，ZX消聲器與排汽管直接焊接，安裝方便。在運行和停爐時能自由伸縮，使排汽管道不因消聲器的安裝而受到額外荷載，保證排汽管道工作的安全可靠；　　

(3)結構簡潔、合理、檢修、維護工作量小；　　

(4)消聲筒材質采用不銹鋼(1Cr18Ni9Ti)制作，具有耐熱、耐腐性，能經久耐用。

特別說明：安裝ZX子系列消聲器后，安全閥、釋放閥的排量不受影響，啟跳、回座壓力亦不受影響。

 ZX series Porous Diffusion Silencer

ZX series porous diffusion silencer is researched and developed in 1990, under the principle of big hole depressure spray silence and through optimal design, its noise lowering index and service time are far excellent than its counterpart on market at present, which can better meet noise-lowering requirement of all kinds of boiler with parameters of low pressure, middle pressure, sub-high pressure, high pressure, super-high pressure and subcritical in many fields such as electric power, metallurgy, petroleum, chemical industry, textile, papering and foodstuff, pressure vessel pipeline gas let empty and its safe valve and discharge valve gas let.
Compared with its counterpart at home and abroad, this series big opening pressure decreasing silencer possesses the following special benefits:
（1）big noise elimination amount. ZXB subfamily amounts to 40dB（A）, ZXC subfamily reaches 30dB（A）（all considered to guiding revise）
（2）small volume light quality, ZX series silencer is directly welded with gas discharge pipe which facilitate fixing. When operating and stopping can freely be flexed which make gas discharge pipeline avoid extra load as a result of fixing silencer, to ensure safe and reliable gas discharge pipeline working;
（3）simple and reasonable structure, small working amount for examining, repairing and maintenance;
（4）The material for silencing body adopts stainless steel（1Cr18Ni9Ti）, featured with thermal resistant, corrosion resistant and wearable.
